| SERIES | SIZE | APPLICATION | TYPE | WOOFER | TWEETERS | BRACKET |
|---|---|---|---|---|---|---|
| 1500 | 6" | DISTRIBUTED AUDIO & HOME THEATER |
IN-CEILING SURROUND |
POLYPROPYLENE WITH TITANIUM |
SILK DOME WITH TITANIUM |
ES-ESS-BRKT-IC-6 |

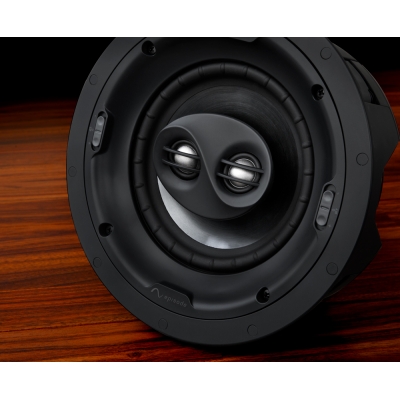

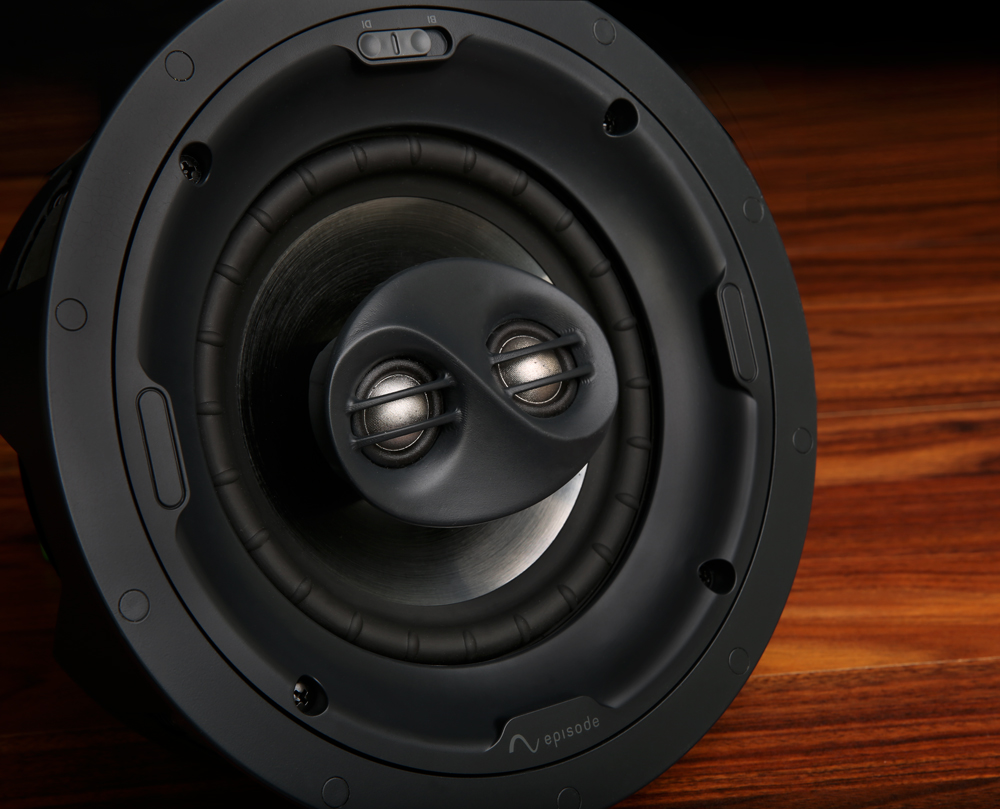

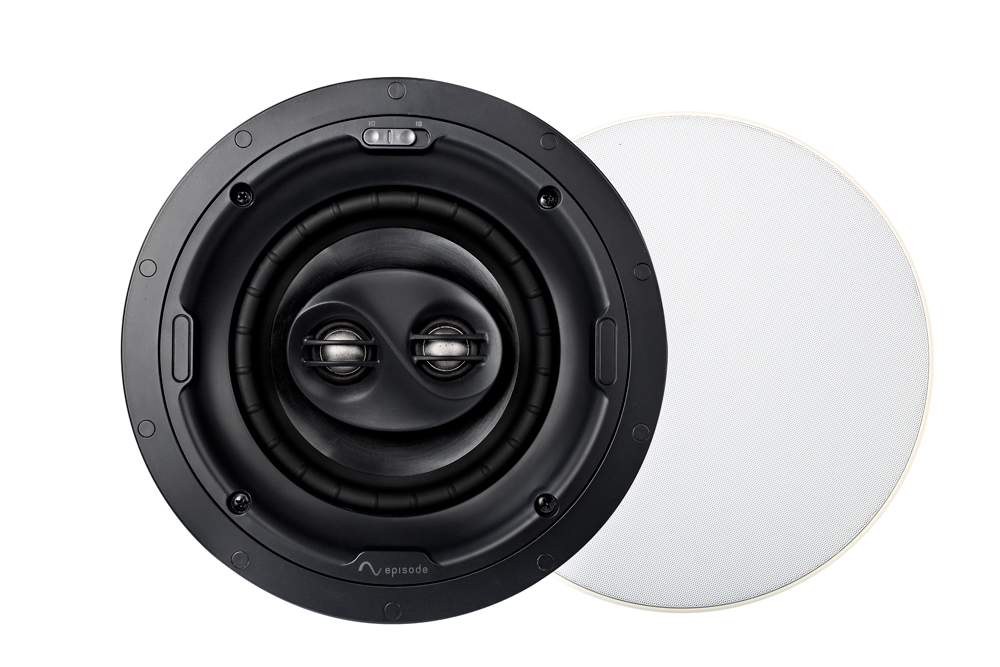

Episode® Signature 1500 Series In-Ceiling Surround Speaker
Take music and movies to the next level with premium Episode Signature quality, and make your mark with incredible in-ceiling sound that installs like a dream.

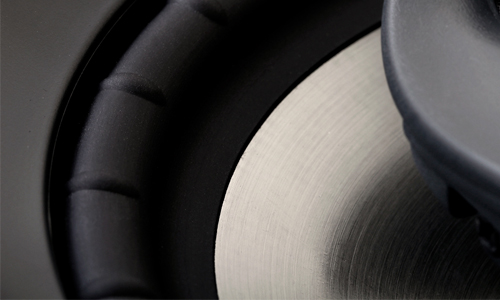

Polypropylene Woofer with Vacuum-Deposited Titanium
Forward-set woofer for wide dispersion and tight bass.
Dual Tweeters with Vacuum-Deposited Titanium
Our dual tweeters deliver warm, refined, and mellow highs for incomparable performance.

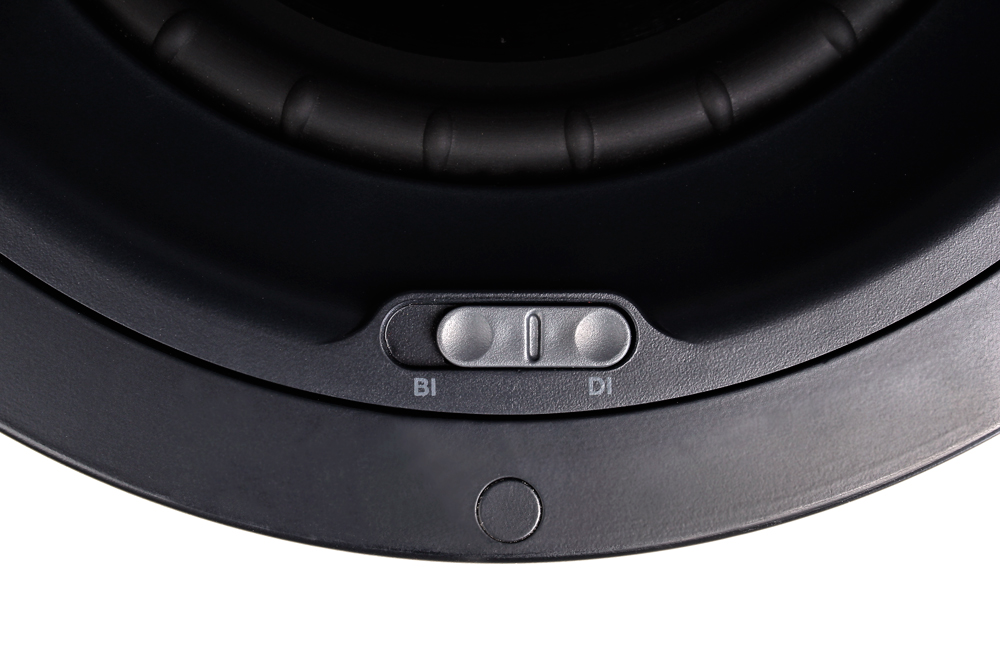

Surround Mode Switch
Set the speaker to bipole or dipole to get the perfect sound for your application and preference.
Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.
Thin-Bezel Design
Keeps the speaker out of sight for a smooth, minimalistic finish.

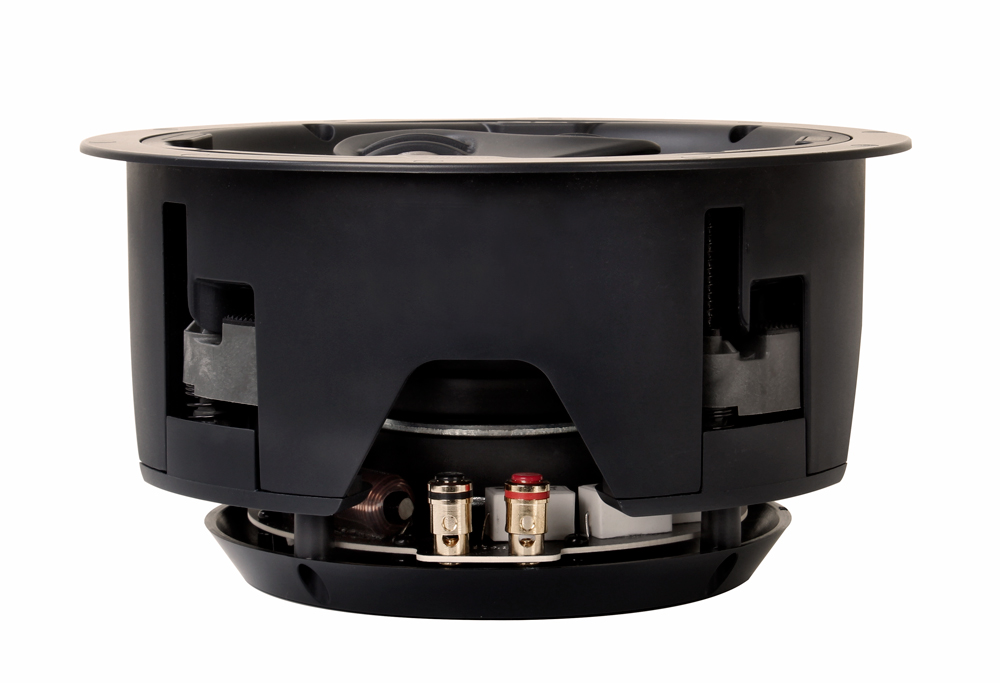

Exclusive Tension Dogs
Screws lock speakers into place with just a quarter-turn.
Install Cover
Protects speaker during install and doubles as a handle.
Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members.
Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
| Specifications | |
|---|---|
| Model | ESS-1500T-ICSURR-6 |
| Woofer | 6" Polypropylene cone woofer with vacuum-deposited titanium |
| Tweeter | 3/4" Adjustable dual silk dome tweeters with vacuum-deposited titanium |
| Adjustments | Suround Mode Bi/Di |
| Power Handling | Minimum 5 Watts Maximum 130 Watts |
| Nominal Impedance | 8 ohm |
| Frequency Response | 45 Hz - 20 kHz |
| Sensitivity (2.83V / 1 Meter) | 89 dB |
| Crossover Frequency | 2.5 kHz |
| Connector Type | Gold plated push terminals |
| Product Weight | 4.5 lbs |
| Grill Type | Steel, magnetic |
| Cutout Dimension | 8.3" |
| Mounting Depth | 4.8" |
| Mounting Depth with Optional Enclsoure | 6.2" |
| Finished Dimension (Size with Grille) | 9.6" |
