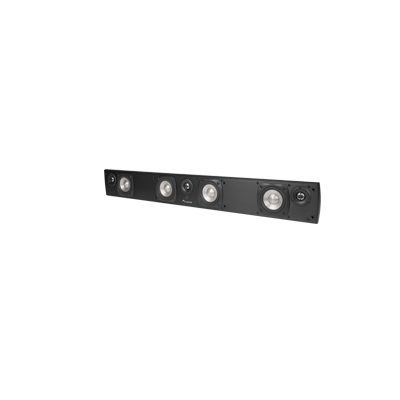

Episode® 550 Series Thin Design 3-Channel Passive Soundbar
Great sound never looked so stylish. The Episode® 550 Series Thin Design 3-Channel Passive Soundbar is made with premium components and designed to fit alongside flat-plan TVs for a modern look! They’re actually three independent speakers in one – consisting of left, center, and right (LCR) channels, and are perfect for living room and bedroom applications.
Ultra Low-Profile Cabinet
Our thinnest 3-channel soundbar available features an aluminum cabinet that’s only 1.83 in. wide. The design also maximizes internal cabinet volume to ensure the best possible performance!
Modern Aesthetics
A brushed aluminum finish and black baffle make this soundbar a statement piece in any space. Plus, it’s modern look blends seamlessly with today’s most popular televisions.
Top Shelf Components
This soundbar features 1" titanium tweeters and 4" polypropylene injection woofer with Nomex Spider and high-temperature voice coil. For fuller, low-end performance, 4" passive radiators are coupled to the active woofer.
Flexible Mounting Options
Included with the soundbar is a bracket for easy wall mounting and a “kickstand” for TV stand or mantle placement.
Hidden IR
Many installations require the use of an IR repeating system, but where do you hide the IR receiver? We've placed a knock-out right behind the grille, so it stays neatly out of sight.
Integrated Wire Management

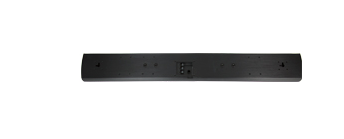

The IR cable and speaker connections are made through a single terminal cup, making it easy to run wires, while the removable enclosure makes it easy to hide them in tight quarters.
Three Channel Construction
With independent left, center and right channels you get all the benefits of a true front-stage, in a discreet form factor. Use the soundbar in combination with an AVR, surrounds and a subwoofer for an amazing theatre system, or pair it with our 3-channel mini amplifier and subwoofer for superior sound at the TV.
| ES-550T-SNDBR-40-BLK | ES-550T-SNDBR-50-BLK | ES-550T-SNDBR-60-BLK | |
| Connectors | Removable Screw-Down Terminals | Removable Screw-Down Terminals | Removable Screw-Down Terminals |
| Nominal Impedance | 6 Ohm | 6 Ohm | 6 Ohm |
| Sensitivity | 88 dB | 88 dB | 88 dB |
| Voice Coil | High Temp Voice Coil | High Temp Voice Coil | High Temp Voice Coil |
| Tweeter | Three 1" Titanium Domes, Neodymium, Ferrofluid Cooled | Three 1" Titanium Domes, Neodymium, Ferrofluid Cooled | Three 1" Titanium Domes, Neodymium, Ferrofluid Cooled |
| Power Peak | 250W | 250W | 250W |
| Dimensions (W x H x D) | 40.56" x 5.17" x 1.83" | 48.92" x 5.17" x 1.83" | 56.6" x 5.17" x 1.83" |
| Power RMS | 100W | 100W | 100W |
| Weight | 10.8 lb | 12.3 lb | 14.8 lb |
| Sold As | Each | Each | Each |
| Woofer | Four 4" Anodized Aluminum cone | Four 4" Anodized Aluminum cone | Four 4" Anodized Aluminum cone |
| Speaker Grille | Acoustically Transparent Cloth | Acoustically Transparent Cloth | Acoustically Transparent Cloth |
| Frequency Response | 110Hz - 22kHz | 110Hz - 22kHz | 105Hz – 22kHz |
| Crossover Frequency | 2.5kHz | 2.5kHz | 2.4kHz |
| Color | Black | Black | Black |
