HDI-3800-GRO

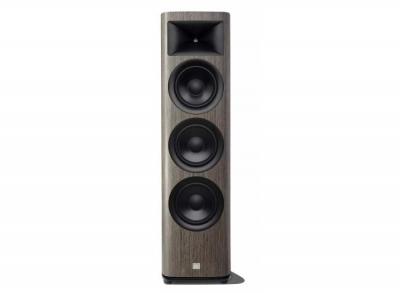

Designed at JBL’s Northridge, California, acoustic engineering facility, the HDI-3800 anchors a complete JBL HDI Series surround system. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, a proprietary 2410H-2 25 mm compression driver and a triple 200 mm Advanced Aluminum Matrix cone speaker to deliver powerful dynamics and incredibly accurate sound reproduction.
General characteristics
Receptacle type

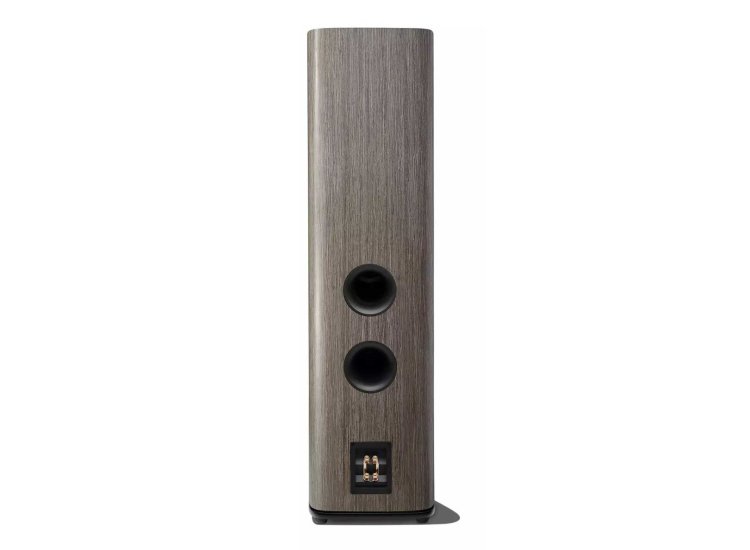

Bass reflex design with rear vibrating port
High frequency transducer
Teonex 25mm compression driver
Mid/Low Frequency Transducers
Three 200mm Advanced Aluminum Matrix cast frame speakers with 200mm black cone
Crossover frequency
800 Hz, 1800 Hz
Sensitivity (2.83 V/1 m)
92 dB
Nominal impedance
4 ohms
Recommended amplifier power
25 W – 300 W
Frequency response
37 Hz to 30 kHz (-6 dB)
Dimensions (width x height x depth)
1100.5 x 300 x 417.8 mm
Net weight: 38 kg
