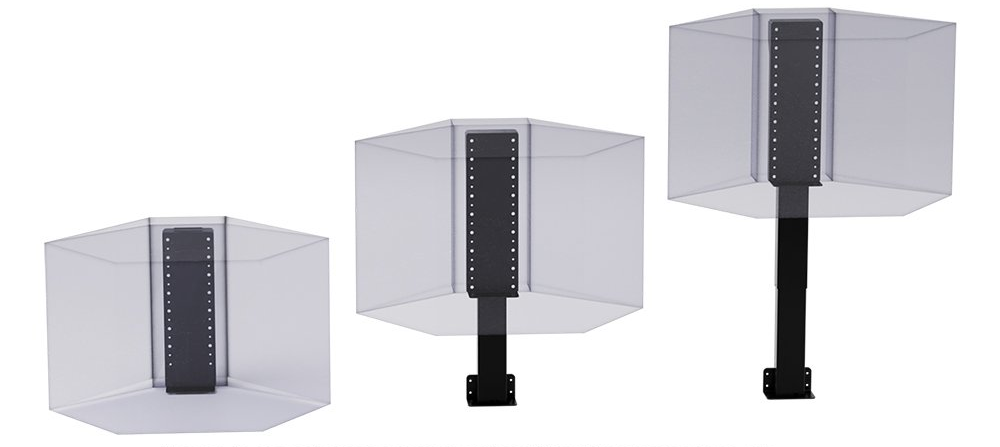

Model AL-125 is the perfect solution for unused and wasted space within your built-in cabinetry. Designed for easy installation, this mechanism allows you to create an enclosure in any shape to conceal kitchen appliances or other valuables. At the push of a button, a concealed cabinet will raise from your cabinetry, providing a new level of convenience and space-efficiency within your kitchen. This model is most often used in the “dead corner” of L-shaped countertops.
TECHNICAL SPECIFICATIONS
- 125 lbs. total lift capacity
(including enclosure box and its contents) - Travels 26”
- No exposed tracks, gears or scissors
- UL recognized
- Draws 3.5 Amps @ 110V and 1.75 Amps @ 220V at max thrust
- Speed 1.5″ per sec. (only 17 sec. to fully raise)
- Quiet – runs at just 45 dB
- Screw-driven mechanism
- Steel construction
- Includes RF remote and wired button pad
- Optional IR receiver and contact closure interface available
- Collision detection provides stop and reverse on impact
- “Soft Start” and “Soft Stop” for smooth ride
- Power is Available in These Formats
Width: 6.3”
Depth: 6”
