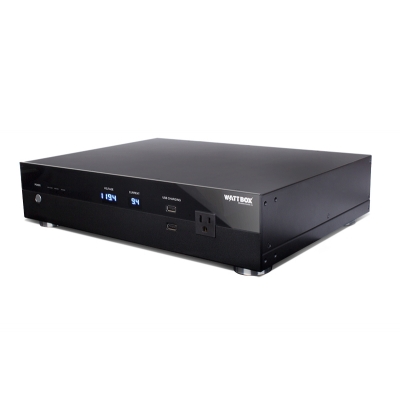

WattBox™ Sequencing Chassis Power Conditioner - Safe Voltage, 12 Outlets, 6480J,
3 Filters, 12V In/Out, 2 Coax, 2 Ethernet
Get all the features and functionality you love about the innovative WattBox™ line in a chassis form factor that s perfect for cabinet and shelf mounting. The WB-600CH-SVCE-12 provides easy access to 12 outlets and has a front panel that provides voltage/current displays and utility outlets for charging peripherals. All connected equipment is safe and sound thanks to best-in-class surge protection of power, coax, and telephone/Ethernet – plus noise filtration for purer audio/video performance. Now THAT S professional grade power.
Important Note: This WattBox power conditioner features switched outlets that are designed for control using the power button on the unit or a 12V trigger from a control system.
FEATURES
Fireproof MOV
Ceramic Encased Surge Components

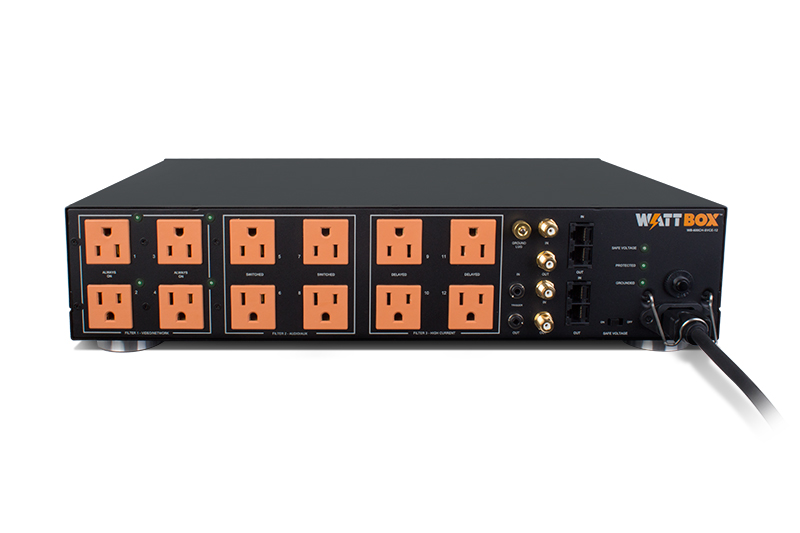

Total Outlets
4 Always On,
4 Switched, and
4 Delayed
Filter Banks
3 Isolated Noise Filters
Safe Voltage
Protects Against Under and Over Voltage
12V Trigger
Remote Power On for System Integration
Surge Protection
Energy Dissipation
INSTALLER FRIENDLY
Stack Away

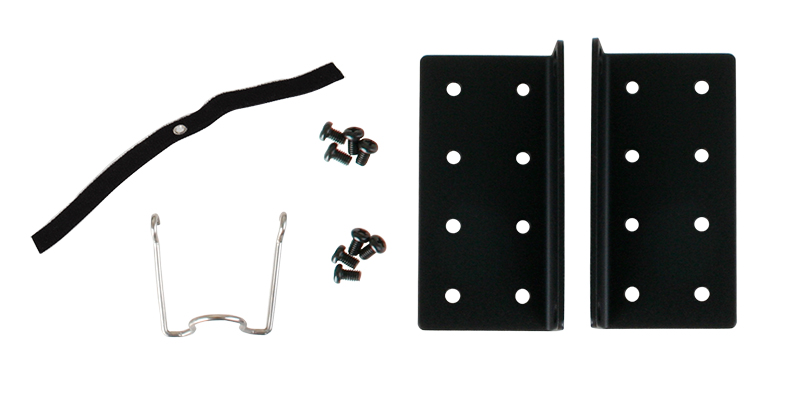

Thanks to a flexible and durable design that s 12.48” deep, this chassis power conditioner is the perfect platform for stacking equipment inside a cabinet or on a shelf – and keeping the whole system running smoothly. Place multiple devices on top of it, without worrying about plugs getting in the way or components hanging off the edge. Adjustable feet ensure that it sits securely on any surface – and if you want to rack mount it, simply use the included rack ears.
Easy-to-Access Diagnostics

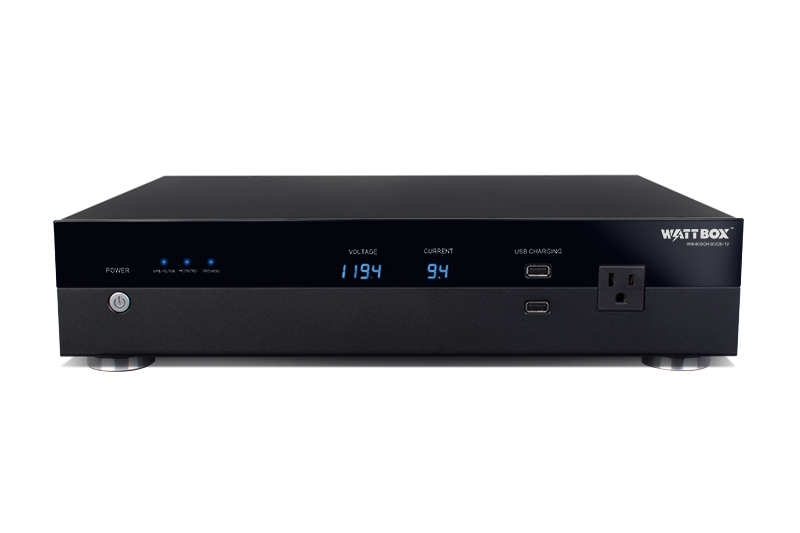

The product s front panel provides individual real time displays of voltage and current, utility outlet, dual USB charging that supports up to 2A total current draw, and a convenient power button that controls the switched outlets. A backlit power button controls the system's switched outlets and indicates they are turned on, while diagnostic LEDs provide visual feedback for safe voltage protection and proper system grounding.
Power Adapters Welcome
We've been there before - you get all the power cords just where you want them, only to forget about the "wall wart" for the IR block or the network switch or the... Then you have to undo something just to make it all fit - oh... and then the bulky "wart" covers up the outlet next to it! To solve this, we have spaced the outlets as far apart as possible and turned them 90-degrees so every outlet can be used. And since those bulky power supplies are prone to falling out, we even supply tie-down straps to keep them in place.
Sequenced Outlets
Powering up large systems all at once can cause an in-rush of current that could potentially trip the circuit breaker or disrupt other equipment. Also, in audio systems, you want the amplifiers to turn on after the preamps to prevent audible "pops" from connected speakers. The sequencing feature takes care of both issues, turning on amplifiers and other high current equipment last. Similarly, when powering the system down, these same components will be turned off first.
12V Trigger Input
A 12V DC is provided to allow triggering from a control system or other component. For example, hook the A/V receiver to the always on outlet then use its 12V trigger output to feed back to the power conditioner's 12V input. Just turn on the receiver and all other source components turn on, too. A separate 12V trigger output is engaged after the last sequenced outlet turns on. This is perfect for letting a control system know everything powered up, or as a trigger to another power conditioner to turn on.
PROTECTION & CONDITIONING
Safe Voltage
Ever noticed a light that dimmed for a few seconds during a storm? This low-voltage condition is typically caused by power grid issues - and it can have an adverse effect on your equipment. WattBox Safe Voltage will protect your gear by automatically disconnecting it during sustained under AND over voltage conditions. When the input voltage returns to a safe level, the equipment will be reconnected automatically.
Noise Filtration
Sensitive A/V equipment is negatively impacted by noisy appliances and other electronics that create interference on the AC line. All WattBox power conditioners feature noise filtration that cleans up this "dirty power" to deliver the purest A/V experience possible. By lowering the audio noise floor and reducing hum, you hear exactly what was intended. Video performance can see an improvement too - with reduced power-related artifacts on HD displays.
Isolated Filter Banks
Not only can noise come from incoming AC line itself, but it is also generated within the system by other components - especially digital devices with switching power supplies and rack fans. The WB-600-SVCE-12 features three independently isolated filter banks to eliminate cross contamination of noise between components. We recommend using one bank for digital source components such as BluRay players and cable/satellite boxes, another for high-current devices such as A/V receivers and amplifiers, and the third bank for sensitive high-speed, networking equipment, AppleTV and control systems.
Surge Protection
Surges can come from a variety of sources - from fluctuations at the power company to catastrophic events such as lightning. This excess energy can damage your connected equipment if not properly protected. The Joule rating is a measure of a surge protector's ability to "clamp" this excess energy down to a safe level - the higher the rating, the more protection your equipment has.
Fireproof MOVs
MOVs, or Metal Oxide Varistors, are surge protection components that dissipate excess energy in the form of heat. Under extreme conditions, lower quality MOVs can get so hot they catch on fire! WattBox power conditioners feature ceramic-encased MOVs to protect not only your system but your home as well.
AC Disconnect
As an added precaution, in the event of a catastrophic spike, a thermal fuse completely disconnects AC power from your system to stop the surge in its tracks before it can get to your connected equipment. All three "legs" of the power (hot, neutral and ground) will disconnect for unsurpassed equipment protection.
Coax, Telephone/Ethernet Protection
Not only can surges creep in on the power, but also telephone, coax and network connections. Dual inputs/outputs for RJ11 or RJ45 connections are provided, with full protection on all 8 pins for telephone and Ethernet applications. Today's sophisticated HD cable and satellite systems have higher bandwidth requirements than they did even a few years ago. Dual 3 GHz coax connections not only protect you against surge, but they deliver premium signal quality with less than 1 dB of attenuation. Pass-through voltage is supported for satellite systems.
GENERAL
Always On Outlets
Use the always on outlets for DVRs, network switches and control systems to ensure that critical devices are ready when you need them. A green LED illuminates to indicate power is being supplied to each outlet. NOTE: These outlets will only be turned off when Safe Voltage is protecting from a sustained under/over voltage condition.
Flexible Power Cable
Bulky power cables can cause all sorts of frustration when installing in a cabinet or rack. This WattBox 600-series power conditioner includes a 6 ft, detachable IEC cord that is super-flexible for easy wire management. The connector is gold plated to resist corrosion and minimize loss. There's also a locking clip to prevent accidental removal. For custom lengths, replacement cords are available from 6 inches long up to 15 feet.
Cord Labels
Pick a card, any card. Sometimes it can feel like a guessing game when you're servicing equipment and trying to figure out which outlet goes to what piece of gear. To prevent this, apply the supplied labels to each cord and know exactly what's what.
Ground Lug
Improper system grounding can lead to audio hum, video scan bars and all sorts of other nasty artifacts. This power conditioner provides a common grounding point for system components using ground leads, such as cable/satellite splitters.
