Switch de red administrable 12 puertos PoE++

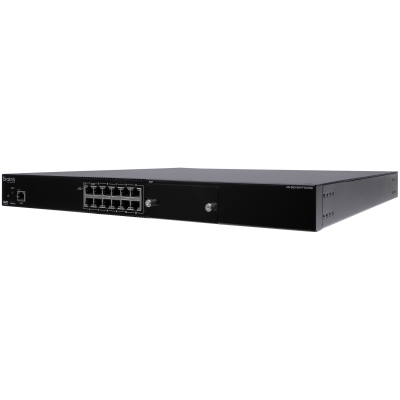

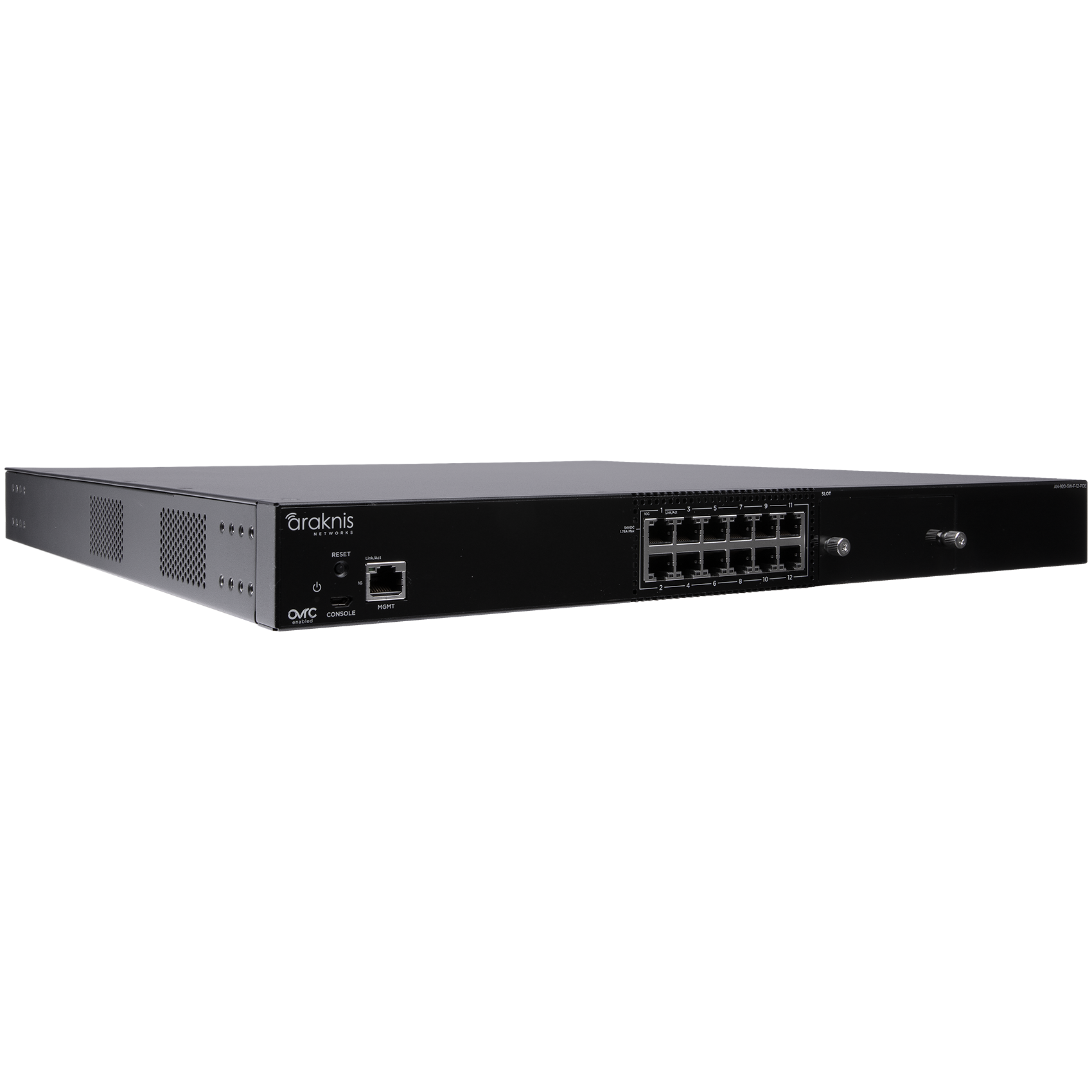

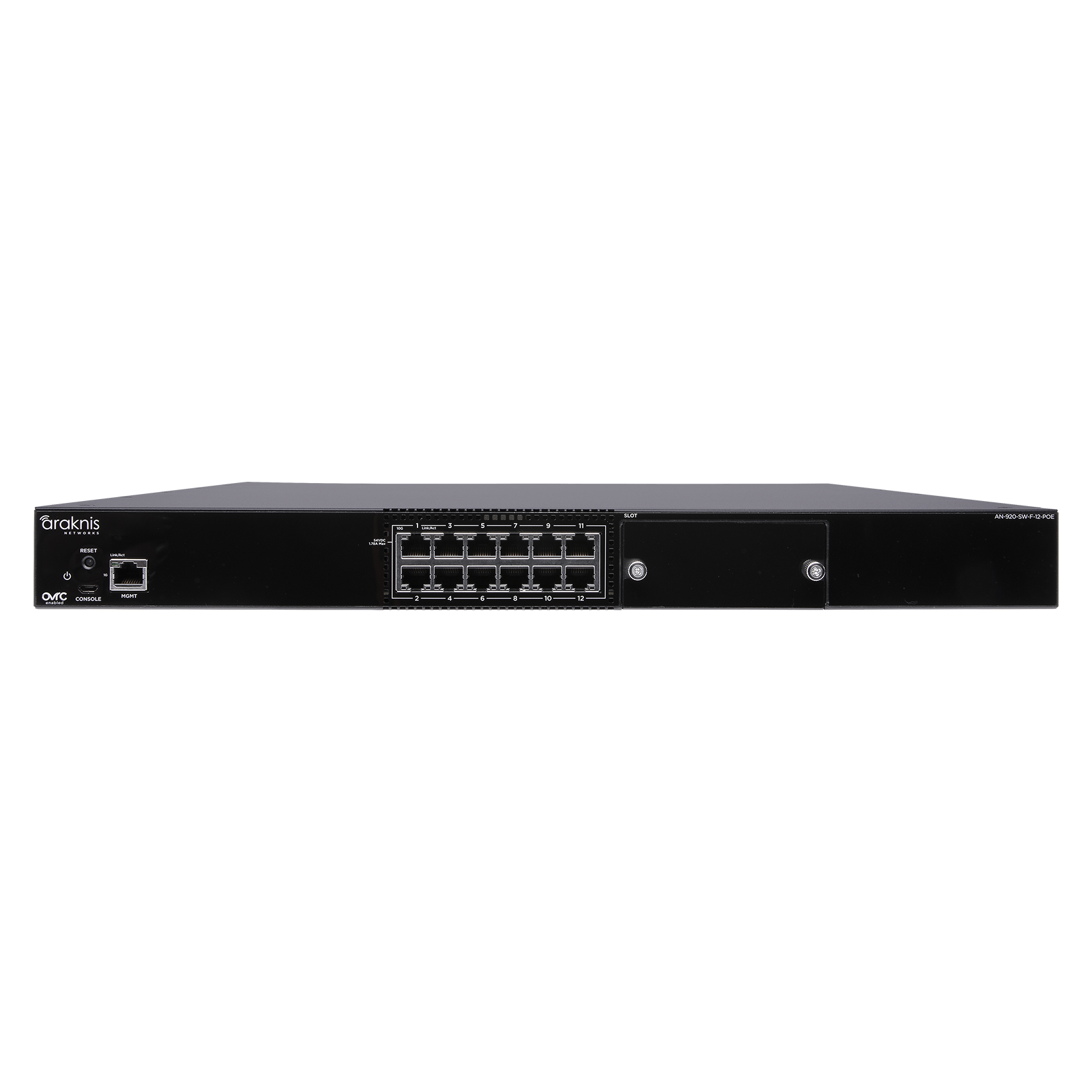

Araknis Networks 920-Series L3 Managed 10G PoE++ Switch

Step into the future of networking with the flagship Araknis 920 series switch. Equipped with 10G PoE++ Type 4 ports to provide up to 90W of power per port, this switch can take on high-performance networking installs and power-intensive applications. With Layer 3 multicast routing, the 920 delivers an efficient network, especially for demanding AV over IP applications. The optional 100G expansion module extends performance for more expansive network applications, while an optional second power supply provides power redundancy and an increased PoE budget. Plus, the 920 is supported by Snap One’s OvrC remote management platform. OvrC saves you time on every deployment and enables remote management for improved service, post-install.

Fully Managed - Layer 3

This switch supports Layer 3 and Layer 2 functionality for more complex network deployments. Layer 3 makes the network more efficient by leveraging static, inter-VLAN, and multicast routing to route traffic locally rather than fully relying on the router.

10G Throughput

With 10G available on every port, this switch is perfectly suited for high-speed applications like AV over IP, Binary MoIP, Wi-Fi 6 and >1G ISP services.

Full PoE++ Up to 90W

Fully PoE++ Type 4 capable ports support up to 90W each. Simultaneous PoE budget varies by model and configuration (ex. if using an optional second power supply). Please refer to specifications for details.

Better With OvrC

OvrC is a free remote management platform created by Snap One that allows professionals to remotely manage, configure, and troubleshoot devices on the network. Araknis works with OvrC to extend the switch configuration and management to the cloud. Pairing Araknis with OvrC enables faster deployments and remote troubleshooting without rolling a truck.

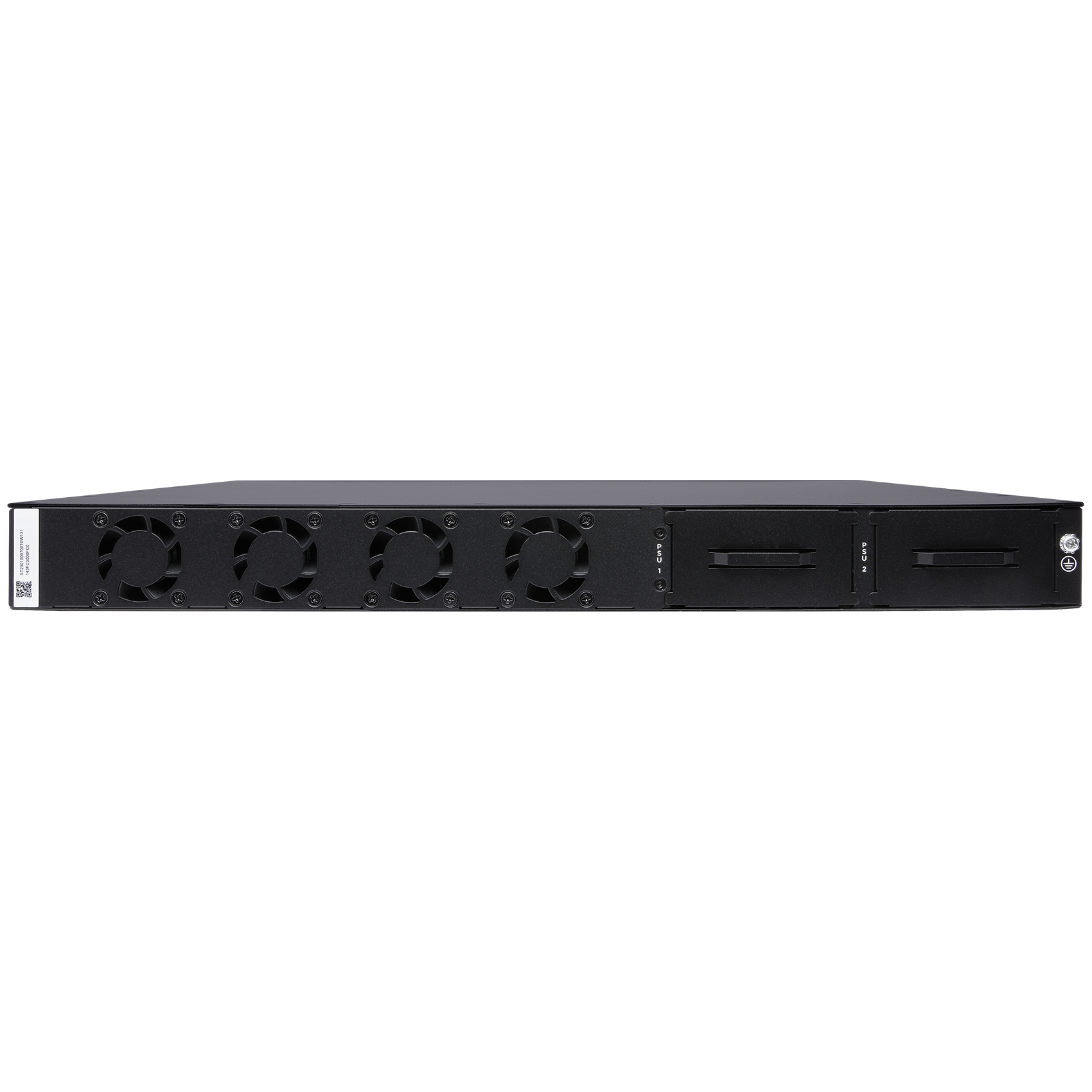

Multi-Speed Fans

The honeycomb venting solution and temperature sensor ensure efficient temperature controls. The sensor drives the speed of the fans based on load and environment, reducing fan noise for quieter operation.

Rack Mountable

Rack ears and 1U design make mounting the switch convenient and simple.

Specifications:

• Rack Spacing: 1U
• Form Factor: 1U Rackmount
• Dimensions (W x H x D): 441.5 mm x 441.5 mm x 44 mm
• Power Consumption: 135.4W Maximum 94.78W Typical
• Line Voltage: 100-240V AC, 50/60Hz
• Weight: (Chassis Only): 5.57kg (12.3lbs)
  (Chassis + PSU 1): 6.53kg (14.4lbs)
  (Chassis + PSU 1 + PSU 2) 7.49kg (16.5lbs)
• Ports: 12 x 100M/1G/2.5G/5G/10G Base-T RJ45
• SFP Ports: 1 x QSFP28 Module Slot
• Console Port Specs: 1 Micro USB
  1 x 10M/100M/1G Base-T RJ45 Management Port
• PoE Power Budget: w/ 1 920W PSU: 771.5W (8 Ports@90W)
  w/ 2 920W PSUs: 1691.5W (12 Ports@90W)
• QoS Features: Priority Queues: 7
  Port-based Rate Limiting
  WRR & SP Schedueling
  Ingress/Egress
  ACL (L2/L3/L4)
  ACL (IPv4/IPv6)
  Auto-VoIP
  DiffServ/Class Maps/Policy Maps
  CoS/802.1p/DSCP
  Single Rate Policing
  Minimum Bandwidth
• PoE Features: Power Sequence Control (per port)
  Time Based (per port)
  Priority Control (per port)
  Perpetual PoE
  Fast PoE
  Configurable Usage Threshhold
  802.3bt Type 4 compliant 90W
• VLAN Features: 802.1Q
  Port Based
  MAC Based
  Voice VLAN
  Private VLAN
• Management Features: OvrC Management
  Web/Telnet/CLI/SNMP
  Full RESTful API
  Dual Firmware Image
  Editable Configuration File (CLI)
  SSLv3/TLS1.2/SSHv2(SHA2)
  Persistent Logging
  Remote Logging
• Temperature Range: Operating: 0-50C - Typical: 50C
• Operating Temperature: 0-50C
• Humidity: 0-90% non-condensing
• Certifications: FCC/IC/CE/AU/cTUVus/IEC62368-1/ERP/RoHS
