Modulo de Bajo Bose

Bose LT 6403 Full Range Loudspeaker (pieza) Blanco


Código: 02-LT 6403-WH

Medium-format waveguide and 60° x 40° pattern designed as the primary reinforcement source for smaller venues, or for use with other LT loudspeakers to form Coherent Zone arrays in medium to large venues.

For indoor applications only.



FEATURES

60° x 40° coverage for medium-throw applications in auditoriums, worship facilities, performing arts centers, and arenas

Full-range loudspeaker with single 15" (381 mm) woofer provides 50 Hz bass to reduce need for additional low-frequency speakers in smaller venues

Bose® V2 midrange manifold sums output of 2 x 4.5" (114 mm) extended-range cone drivers for lower breakup distortion and improved transient response. Provides a smoother, more natural vocal range compared to single 8" to 12" woofers. The LT 6403 loudspeaker utilizes a single Bose V2 midrange manifold

Bose large-format waveguide provides effective 60° x 40° pattern control to approximately 800 Hz (horizontal) and 1.5 kHz (vertical). Minimizes loudspeaker overlap in arrays to reduce comb-filter interference and improve intelligibility

Applications

  • Indoor arenas
  • Houses of worship
  • Auditoriums
  • Performing arts venues
SPECS

Technical Summary

Frequency Response (+/-3 dB)
50 Hz - 16 kHz

Frequency Range (-10 dB)
42 Hz - 18 kHz

Nominal Dispersion
60° H x 40° V

Sensitivity (SPL / 1 W @ 1 m)
96 dB SPL

Maximum SPL @ 1 m
123 dB SPL (129 dB SPL peak)

Long-Term Power Handling
500 W (2000 W peak)

Nominal Impedance
8 Ω

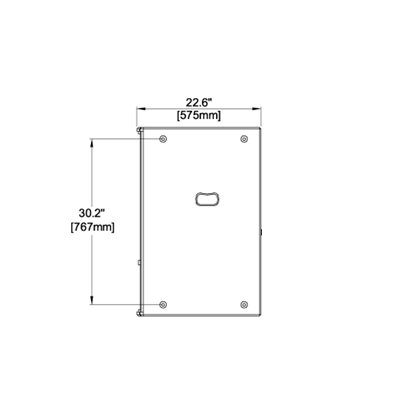

Mechanical Diagrams

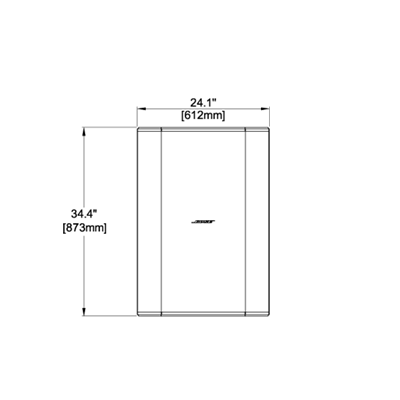

Front View

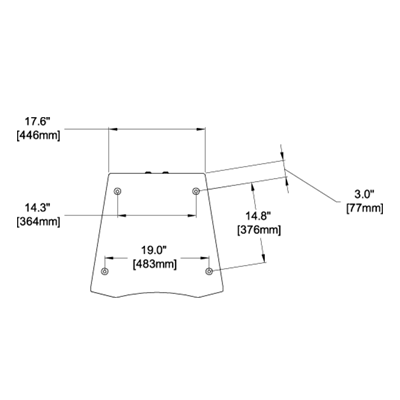

Top View

Side View

Product Codes

Black
040180

White
040181 (Special Order Only)
