| SERIES | SIZE | APPLICATION | TYPE | WOOFER | TWEETER | BRACKET |
|---|---|---|---|---|---|---|
| 1300 | 6" | DISTRIBUTED AUDIO |
IN-CEILING POINT |
POLYPROPYLENE | SILK DOME | ES-ESS-BRKT-IC-8 |

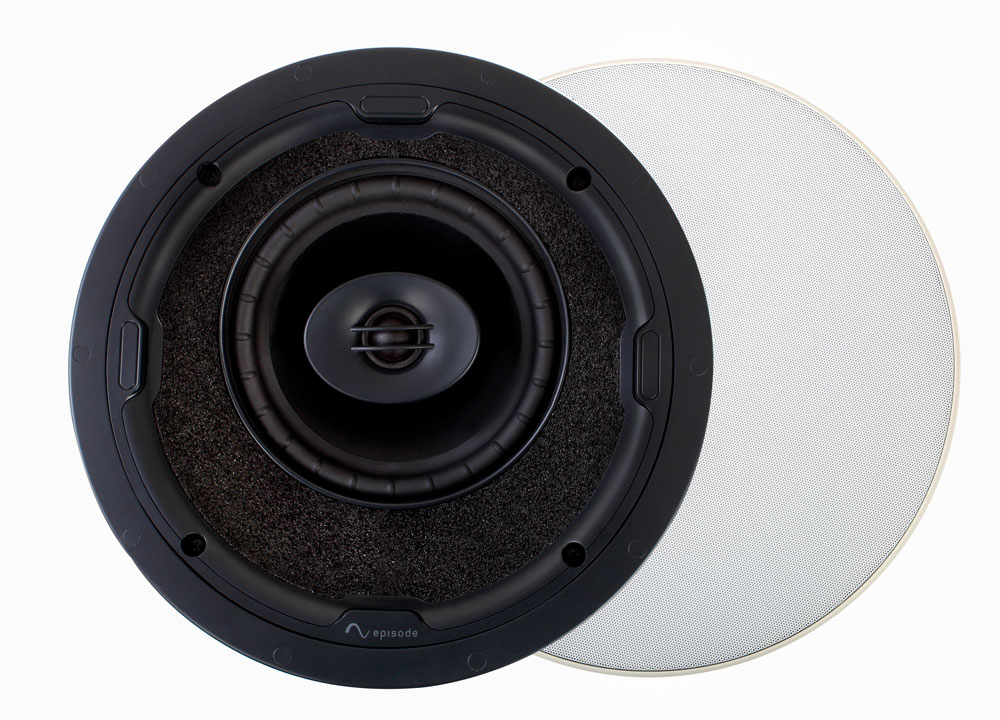

Episode® Signature 1300 Series In-Ceiling Point Speaker
Outstanding performance is enhanced by an angled configuration and an adjustable tweeter that are perfect for directional in-ceiling sound.
Directional Point
15-degree angle enhances sound dispersion to maximize coverage.
Thin-Bezel Design
Magnetic, one-step paintable grill keeps the speaker out of sight for a smooth, minimalistic finish.

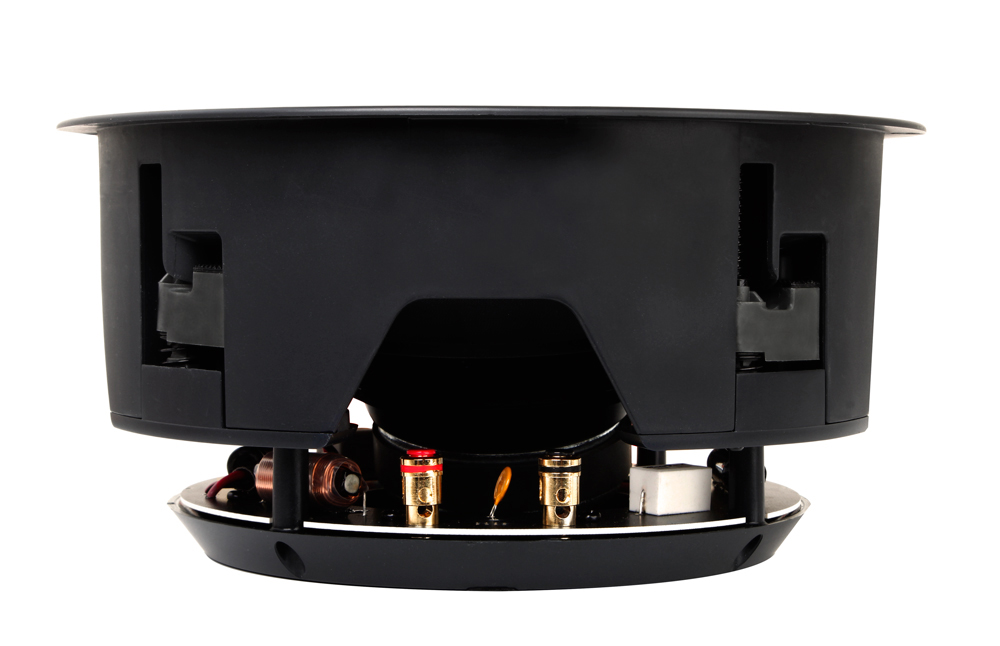

Exclusive Tension Dogs
Patent-pending screws hold speakers in place during installation with just a quarter turn. Just tighten fully for easy release.

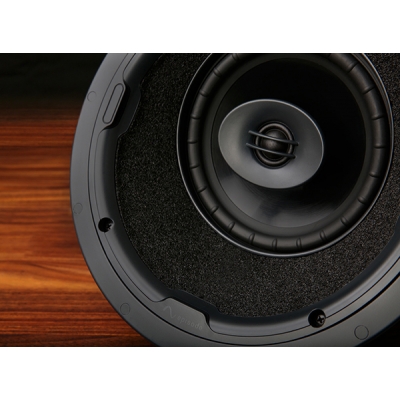

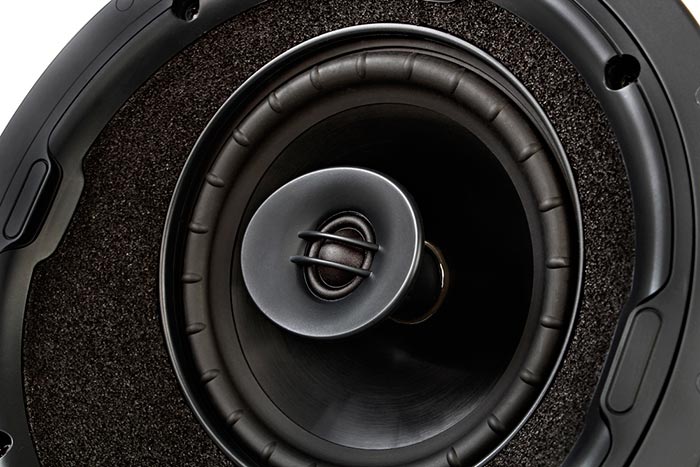

Adjustable Silk Dome Tweeter
Direct sound where you want to create more immersive experiences.
Polypropylene Woofer
Forward-set polypropylene woofer for wide dispersion and punchy bass.
Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.
Install Cover
Protects speaker during install and doubles as a handle.
Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members
Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
| Specifications | |
|---|---|
| Model | ESS-1300T-POINT-6 |
| Woofer | 6" Injection-molded polypropylene cone woofer |
| Tweeter | 3/4" Adjustable silk dome tweeter |
| Adjustments | N/A |
| Power Handling | Minimum 5 Watts Maximum 130 Watts |
| Nominal Impedance | 8 ohm |
| Frequency Response | 45 Hz - 20 kHz |
| Sensitivity (2.83V / 1 Meter) | 89 dB |
| Crossover Frequency | 2.35 kHz |
| Connector Type | Gold plated push terminals |
| Product Weight | 5.1 lbs |
| Grill Type | Steel, magnetic |
| Cutout Dimension | 9.7" |
| Mounting Depth | 5.2" |
| Mounting Depth with Optional Enclsoure | 6.6" |
| Finished Dimension (Size with Grille) | 11.0" |
