HDI-3600-GRO

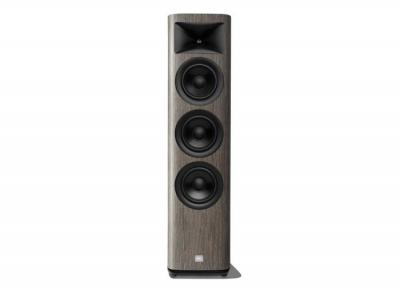

Designed and manufactured at JBL’s acoustic engineering facility in Northridge, California, the HDI-3600 delivers exceptional performance in a compact form factor. This floorstanding speaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, a proprietary 2410H-2 25 mm compression driver and a triple 165 mm Advanced Aluminum Matrix cone speaker to deliver powerful dynamics and incredibly accurate sound reproduction.
General characteristics
Net weight: 28.03 kg
Receptacle type

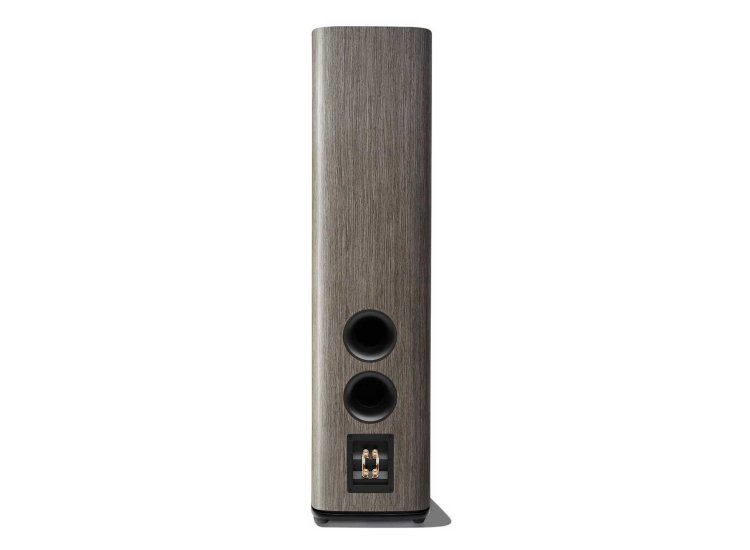

Bass reflex design with rear vibrating port
High frequency transducer
Teonex 25mm compression driver
Mid/Low Frequency Transducers
Three 165mm black cone Advanced Aluminum Matrix cast frame speakers
Crossover frequency
900 Hz, 2000 Hz
Sensitivity (2.83 V/1 m)
90 dB
Nominal impedance
4 ohms
Recommended amplifier power
20 W – 250 W
Frequency response
38 Hz to 30 kHz (-6 dB)
Dimensions (width x height x depth)
986.5 x 255 x 341.9 mm.
