JBL Synthesis Loudspeaker

SCL-1

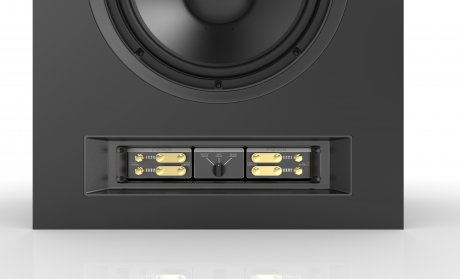

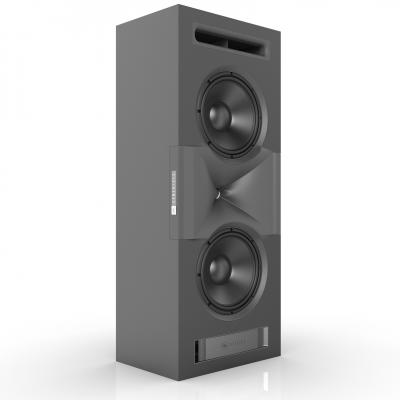

The SCL-1 is a custom in-room/built-in loudspeaker and is the flagship of the JBL Synthesis SCL loudspeaker range. It features JBL's patented D2430K dual 3-inch (75mm) compression driver mated to a large format High-Definition Imaging (HDI™) horn. Dual 12-inch (300mm) Carbon Cellulose Composite Cone (C4) cast-frame woofers operate in a patented Complementary Bass Alignment System (CBAS™) enclosure to provide high-output capability while delivering an easy load to the amplifier. A front-panel configuration panel allows for bi-wiring, bi-amplification, and crossover bypass for fully active operation with outboard digital crossovers. The SSW-1 delivers unparalleled performance behind projection screens and inside custom cabinetry and is ideal for use in large to extra-large rooms.

General Specifications

Type 2-Way In-room loudspeaker
Low Frequency DriversDual 12-inch (300mm) Black Carbon Cellulose Composite Cone (C4) cast-frame woofers
High Frequency Drive r3" (75mm) dual annular Teonex ring-diaphragm compression driver with dual neodymium motor structures mated to Sonoglass HDI horn
Recommended Amplifier Power (Full bandwidth)500 WRMS
Recommended Amplifier Power (80 Hz HPF)500 WRMS
Impedance 4 Ohm
Loudspeaker Sensitivity 94 dB/1W/1m
Frequency Response 40 Hz - 24 kHz (-6 dB), 3rd order LF roll-off
Crossover Frequency 775 Hz
Coverage area, -6 dB @ 10 kHzApproximately 120 degrees horizontal x 100 degrees vertical
Coverage area, -6 dB @ 20 kHzApproximately 90 degrees horizontal x 70 degrees vertical
Enclosure Type Complementary Bass Alignment System (CBAS™)
HF Level Controls 3 Position - No grille, With grille, or With screen
Grille Dimensions 47.98" H x 19" W x 0.787" D (1218.7mm x 482.6mm x 20mm)
Product Dimensions 47.98" H x 19" W x 14.49" D (1218.7mm x 482.6mm x 368.1mm)
Input Type Dual sets of gold-plated binding posts
Product Weight 177.5 lb. (80.5kg)
Shipping Weight 306.5 lb. (139 kg)
Shipping Units of Measure Each
