JBL Synthesis In-Wall Loudspeaker

SCL-6

2.5-Way Quadruple 5.25-inch (130mm) In-Wall Loudspeaker

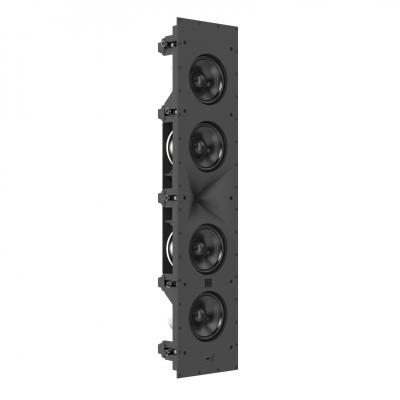

The SCL-6 is the largest traditional in-wall model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as an LCR or surround channel in a variety of applications. The SCL-6 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to a High Definition Imaging (HDI™) horn. This patented horn design is integrated with four 5.25-inch (130 mm) Advanced Aluminum Matrix cone cast-frame woofers into a precision molded baffle assembly. The configuration yields incredibly smooth and consistent performance for in-wall LCR or surround applications. The SCL-6 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution. It is ideal for use in small, medium, or large rooms.

General Specifications

Type 2.5-Way In-wall loudspeaker
Low Frequency Driver Four 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4)
High Frequency Driver 1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
Recommended Amplifier Power 25 – 200W RMS
Impedance 4 Ohm
Loudspeaker Sensitivity 91 dB/2.83V/1m (2pi anechoic)
Frequency Response 50Hz - 30kHz (-6 dB on-axis), 2pi anechoic
Crossover Frequency 1.8 kHz
High Frequency Coverage Angle (-6 dB)80° Vertical / 80° Horizontal, from 2 kHz to 17 kHz.
Enclosure Type Open back
Controls Boundary Proximity Control
Grille Dimensions 7.29” (185 mm) x 31.32” (796 mm)
Product Dimensions (with grille) 7.29” (185 mm) x 31.32” (796 mm) x 3.82” (97.1 mm)
Cut-out Dimensions 6.18” (157 mm) x 30.18” (766 mm)
Rough-in Bracket WB54
Mounting Depth 3.63” (92 mm)
Input Type Gold-plated spring-loaded binding posts
Product Weight 22.2 lbs (10.07 kg)
Shipping Weight 25.6 lbs (11.61 kg)
Shipping Units of Measure Each
