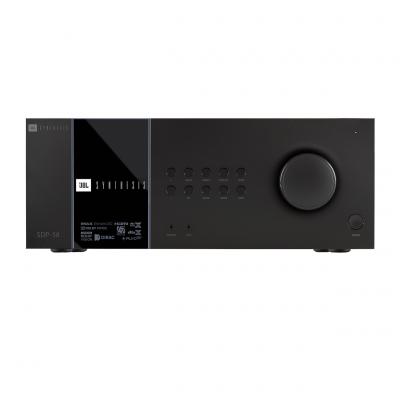

SDP-58
The JBL Synthesis SDP-58 is designed to ensure exceptional performance without compromise and offers an unparalleled feature set that puts it far ahead of the competition. It features full support for Dolby ATMOS, DTS:X, and Auro-3D immersive audio formats. DIRAC Live with Bass Control room EQ with JBL Synthesis system enhancements provides exceptionally accurate system tuning. A full suite of digital and analog connectivity is included along DANTE digital audio networking and HDMI 2.1 (8K Ultra HD) AV switching with support for Dolby Vision and HDR10+ dynamic video, plus IMAX Enhanced certification. Network and Bluetooth streaming are included with Google Chromecast built-in, Apple Airplay 2, Spotify Connect and Tidal Connect, plus it is Roon Ready with Hi-Res and MQA support. Full external control allows for complete and easy system integration.
General Specifications
Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response20Hz— 20kHz ± 0.1dB
Single-Ended nominal output level 1V RMS (max. 5V RMS)
Balanced nominal output level 2V RMS (max. 10V RMS)
THD+N (20Hz—20kHz) –100dB
Maximum output level into 32Ω 5Vrms
Recommended headphone impedance 16Ω-64Ω
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 50W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (idle, typical) 40W (Thermal dissipation approx. 170 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 10.7kg
Weight (packed) 14.0kg
