STUDIO 620

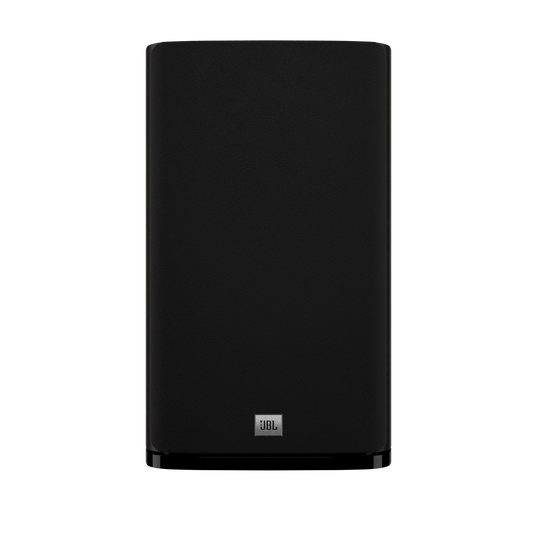

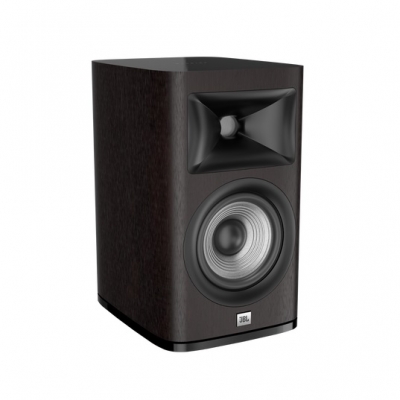

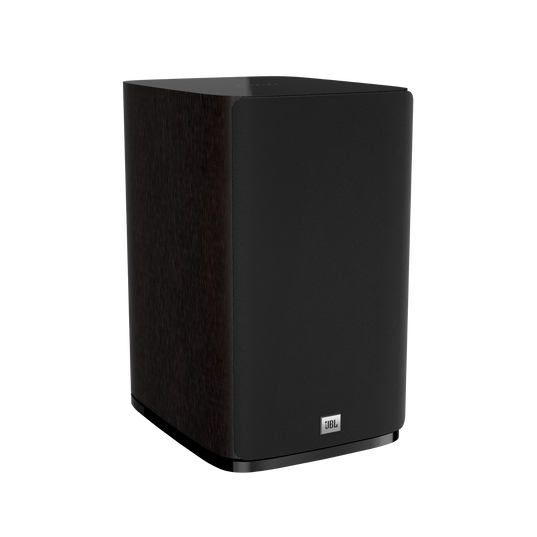

The JBL Studio 620 is a high-performance bookshelf loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by a 5.25-inch PolyPlas cone woofer. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
GENERAL SPECIFICATIONS
Single 5.25", 2-way compression driver bookshelf loudspeaker Yes
5.25" (133mm) PolyPlas Low-Frequency Woofer Yes
High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver Yes
Recommended Amplifier Power Max 100W
Frequency Response 50Hz – 40kHz
Sensitivity 84dB @ 1M, 2.83V
Nominal Impedance 6 Ohms
Crossover Frequencies 2.3 kHz

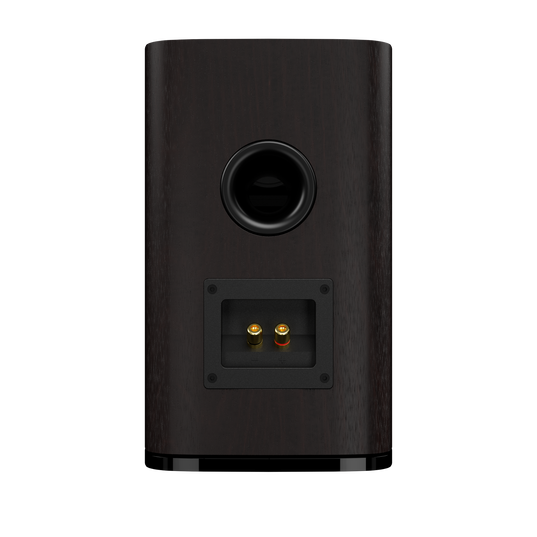

Enclosure Type Bass-Reflex via Rear-Firing Tuned Port
Dimensions (W x D x H)190 x 240 x 312mm
