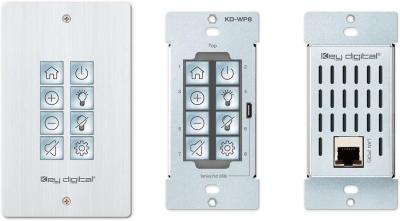

KD-WP8
8 button IP Control Keypad
FEATURES
PoE Powered: Installs cleanly with PoE network switch or PoE injector (not included).
Single-Gang: Fits U.S. single-gang wall box. Brushed aluminum decora plate included.
Ease of Programming: Web GUI walkthrough of network settings, project import & export, button configuration, event programming and virtual event keypad access.
IP Controller: Natively sends TCP and UDP commands in ASCII or HEX format for controlling IP devices without any additional hardware needed.
IR, RS-232, and Relay Control: Add KD-CX800, KD-MC1000, or KD-IP822/922/1022 master controllers for native control or IR, RS-232, or voltage relay devices.
Multi-Controller Support: Integrate with any number of KD Master Controllers
Point-to-Point Support: Direct connect network cabling from KD-WP8 to PoE injector and Master Controller for installation without network setup hassle.
RS-232 Command Strings: ASCII or HEX formats supported. Selectable baud rate from 1,200 to 115,200 bps
IR Command Strings: Copy & paste Pronto Hex or Compass Control IR burst data.
Button LED Control: Adjustable unit LED brightness and programming support for any button's LED behavior.
160 Events Possible: Up to 10 commands on button press and release/repeat, for up to 20 events per button and 160 events total.
Key Combo Security: Two-button press combo may be set to lock & unlock keypad.
Virtual Keypads: Password protected web GUI with user-friendly minimal layout or Programmer-friendly layout with transmit & receive logs.
KDMS™ Pro and KD-App Ready: Virtual keypad GUI options accessed by PC software and iOS app.
Button Configuration: Red or blue LED backlighting, normal or toggle button types, press event, release event, hold for repeat, and hold for send options.
Detachable Button Caps: 10 inner button caps, 10 outer button caps, and flathead mini screwdriver included.
Icon Sheets: 175 transparent icons provided. Template available for custom printing.
Open API: Simple two-way communication protocol for IP integration with control systems.
SPECIFICATIONS
Technical:
RJ45 Connector: Shielded Link, 1x LAN
Unit Control: Bi-directional TCP/IP on RJ45, USB Micro
General:
Regulation: CE, RoHS, WEEE, EAC
Buttons: 8 blue/red backlit buttons with clear outer cap
Wall plate: U.S. 1-gang wall plate in aluminum enclosure
Decora plate: Brushed aluminum
Product Dimensions: 4.13” x 1.93" x 1.21" (105 x 49 x 30.8mm)
Packaging Dimensions: 5.75” x 4.13” x 2.56” (146 x 105 x 65mm)
Product Weight: 0.5 lb / 0.23kg
Shipping Weight: 1.5 lb / 0.68kg
ACCESSORIES
Qty 1: 6ft USB A to USB micro cable
Qty 1: Brushed aluminum decora plate
Qty 4: Decora and box mounting screws
Qty 10: Inner button caps
Qty 10: Outer button caps (clear)
Qty 1: Fleathead mini screwderiver
Qty 1 (set): Icon button sheets
