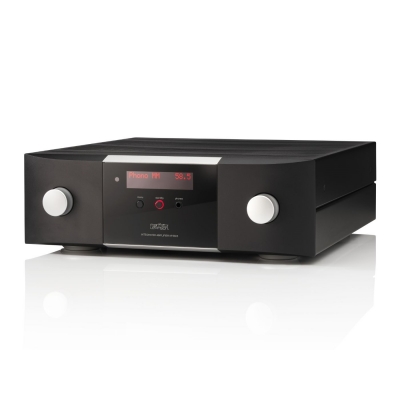

NO5802
Nº5802 integrated amplifier with Precision Link II high-resolution 32/384 DAC, AES input, 125W fully discrete, direct-coupled, class AB amplifier, and Main Drive headphone power, full MQA Decoding, and Apt X HD Bluetooth.
Highlights:
Nº 5000 Series signature design
EuP compliant / low-power standby
Highly capable power supply (500+ VA toroidal transformer)
Designed and handcrafted in the USA.
Inputs:
1x AES, 1x USB 2.0, 2x coaxial S/PDIF and 2x optical S/PDIF
384 kHz/32 bit PCM and DSD 11.2 MHz capability
Bluetooth audio input including aptX HD support
MQA full decoding on all digital inputs including asynchronous USB.
Outputs:
Line outputs: 1 x RCA stereo (variable)
Headphone output: 1 x 1/4-inch/6.35mm jack (front panel)
Loudspeaker outputs: 2 pairs high-current binding posts.
Control:
Ethernet (RJ45), RS-232 (DB9), 12V trigger input/output and IR input (3.5mm jack)
Webpage setup, configuration import/export, software updates
Aluminum IR remote control
Mark Levinson 5Kontrol app for Android and iOS devices.
|
Mark_Levinson_No5805_No5802_OM_PartNo070-90062_rev.A.2_EN.pdf |
|
|
SC02497_Mark-Levinson-No5805-_-No5802-Specifications_LR.pdf |
