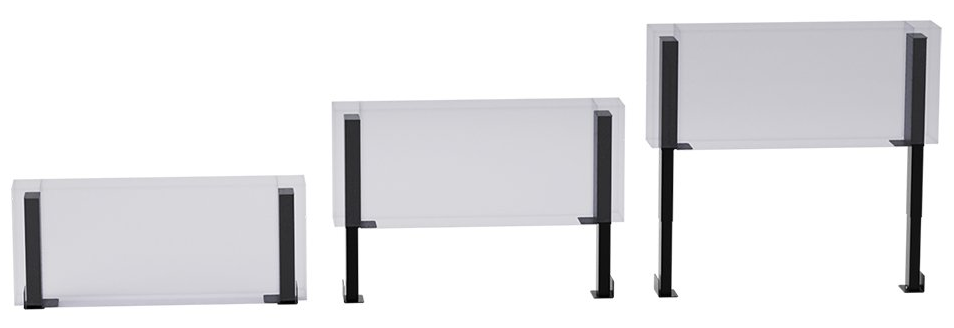

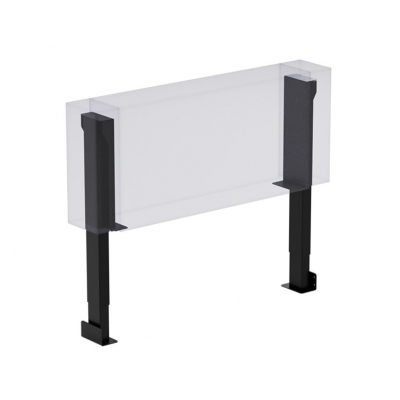

Model AL-250 is the amazingly versatile product used by professionals and homeowners around the world to create an unlimited number of attractive hidden storage solutions. Common applications include easy-access platforms for kitchen appliances, hidden bars or storage for espresso machines. The lift can be controlled by remote control or with a wired button pad, both of which are provided.
TECHNICAL SPECIFICATIONS
- 250 lbs. total lift capacity (including enclosure box and its contents)
- Travels 26”
- No exposed tracks, gears or scissors
- UL recognized
- Draws 3.5 Amps @ 110V and 1.75 Amps @ 220V at max thrust
- Speed 1.5″ per sec. (only 17 sec. to fully raise)
- Quiet – runs at just 45 dB
- Screw-driven mechanism
- Steel construction
- Includes RF remote and wired button pad
- Optional IR receiver and contact closure interface available
- Collision detection provides stop and reverse on impact
- “Soft Start” and “Soft Stop” for smooth ride
- Power is Available in These Formats
Height: 20.7”
Width: 6.3”
Depth: 6”
