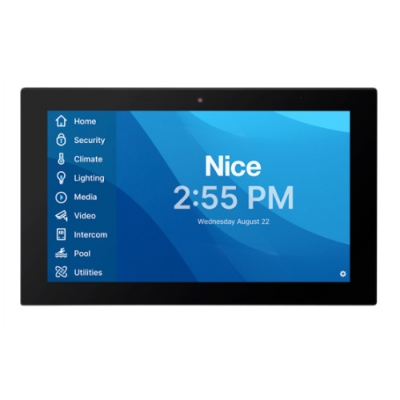

The EL-ITP2-12 panel elevates any Nice Home Management system with a personalized experience for individual users within the home.
Integrate intelligent touch panels throughout a home for convenient access to adjust lights, climates, shades, turn on music, see and speak to guests at the front door, view live or recorded surveillance footage, monitor indoor air quality, power, water, and so much more.
And with integrated voice control and face recognition, this control panel is fully interactive.
With edge-to-edge glass and a 1920 x 1200 screen resolution, the EL-ITP2-12 panel is elegantly designed to have a low profile on the wall while providing a rich user experience.
The interface comes with a library of background themes to choose from, while the user can also import their own photos to fully customize their touch panel.
- IntelliVision® face recognition in the panel’s camera enables a personal experience
- Integrated microphone array extends the voice control interface for Nice systems
- Displays high resolution video and provides playback interface for Nice surveillance
- H.246 and H.265 compatible
- 11.6" diagonal LCD capacitive touchscreen
- Edge to edge glass
- Proximity sensor to wake from sleep without touching as hand approaches

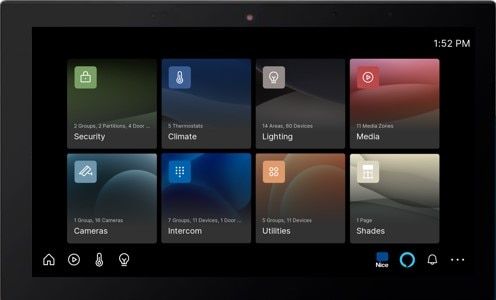

- Personalized panel menu provides instant access to scenes, favorites or event maps
- Mounts into drywall, brick, stone, plaster, and wood, using a standard 2g U.S. junction box
- Portrait or landscape mounting
- Plug and play operation with Nice software
- Bluetooth receiver can be used to stream from linked devices to a SC-100/300 system controller
- Locally powered (optional)
Dimensions 11.68" W x 7.25" H (29.66cm W x 18.4cm H)
Display 11.6"
Diagonal Resolution 1920 W x 1080 H
Microphone Dual digital MEMS Microphone-Array
Speaker Stereo Micro Speaker, 1 W
Camera 5 Mega-Pixel CMOS Sensor
Network 10/100 Ethernet / 802.11 B/G/N WiFi
Type LAN / PoE: RJ-45
Power 2 pin Phoenix
USB USB Type a
Direct 12V 1A
PoE IEEE 2.4 GHz Wi-Fi 802.3at, (Power over Ethernet) 13W maximum draw (@48V 270mA max)
Bezel Colors White or Black
PACKAGE CONTENTS
- (1) EL-ITP2-12 Touch Panel
- (1) Quick Install Guide
- (1) Mounting Bracket
