| SERIES | SIZE | APPLICATION | TYPE | WOOFER | TWEETER | BRACKET |
|---|---|---|---|---|---|---|
| 1300 | 6" | DISTRIBUTED AUDIO |
IN-CEILING STANDARD |
POLYPROPYLENE | SILK DOME | ES-ESS-BRKT-IC-6 |
Episode® Signature 1300 Series In-Ceiling Speaker
Impeccable clarity meets astounding design, for a speaker that’s bound to impress every time. It’s a perfect fit for multi-room audio and its smart installation features make it a winner for custom installs.
Polypropylene Woofer
Forward-set polypropylene woofer for wide dispersion and punchy bass.

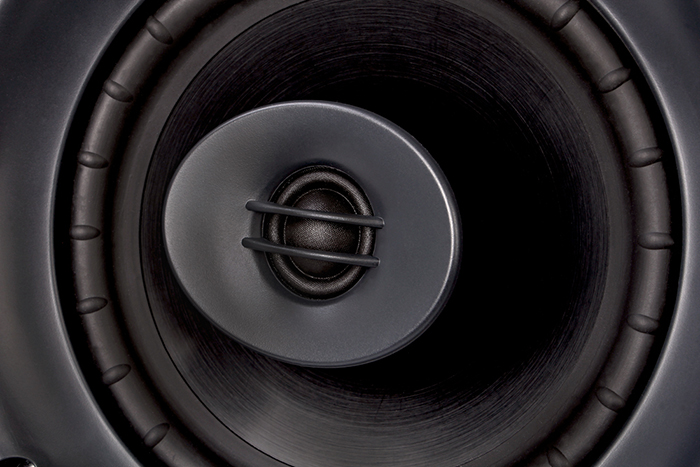

Adjustable Silk Dome Tweeter
Direct sound where you want to create more immersive experiences.
Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.

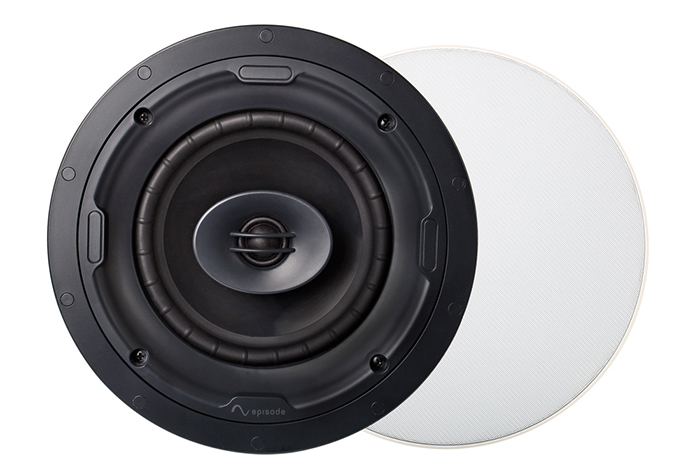

Thin-Bezel Design
Magnetic, one-step paintable grille keeps the speaker out of sight for a smooth, minimalistic finish.

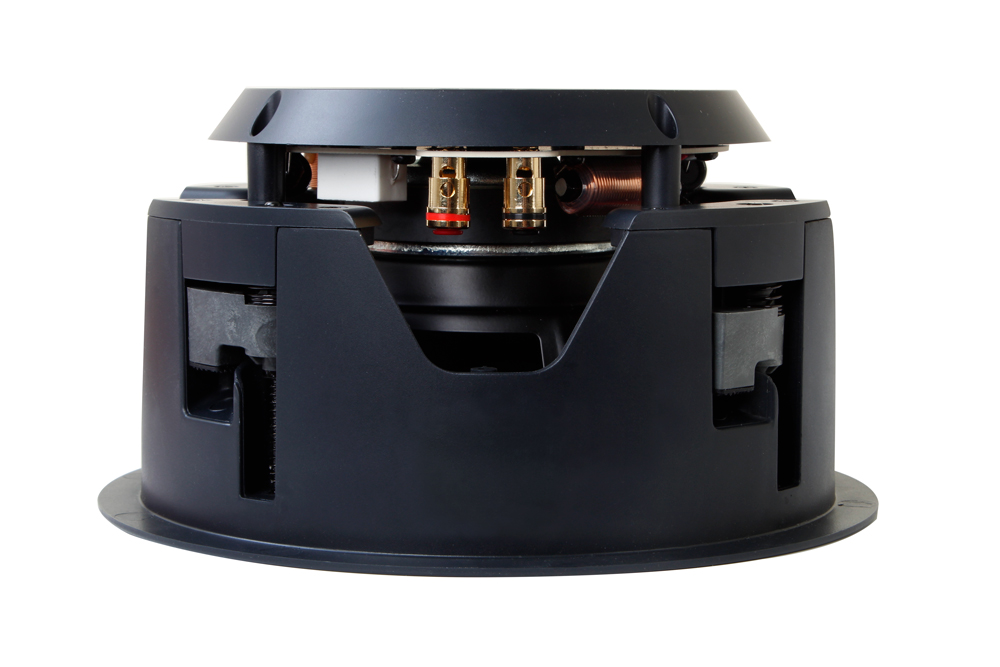

Exclusive Tension Dogs
Screws hold speakers in place during installation with just a quarter turn. Just tighten fully for easy release.
Install Cover
Protects speaker during install and doubles as a handle.
Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members.
Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
| Specifications | |
|---|---|
| Model | ESS-1300T-IC-6 |
| Woofer | 6" Injection-molded polypropylene cone woofer |
| Tweeter | 3/4" Adjustable silk dome tweeter |
| Adjustments | N/A |
| Power Handling | Minimum 5 Watts Maximum 130 Watts |
| Nominal Impedance | 8 ohm |
| Frequency Response | 45 Hz - 20 kHz |
| Sensitivity (2.83V / 1 Meter) | 89 dB |
| Crossover Frequency | 2.5 kHz |
| Connector Type | Gold plated push terminals |
| Product Weight | 4.4 lbs |
| Grill Type | Steel, magnetic |
| Cutout Dimension | 8.3" |
| Mounting Depth | 4.8" |
| Mounting Depth with Optional Enclsoure | 6.2" |
| Finished Dimension (Size with Grille) | 9.6" |
