SERIES1300 |
APPLICATIONDistributed Audio |
TYPEIn-Ceiling |
WOOFERPolypropelene |
TWEETERSilk Dome |
BRACKETESS-BRKT-IC |

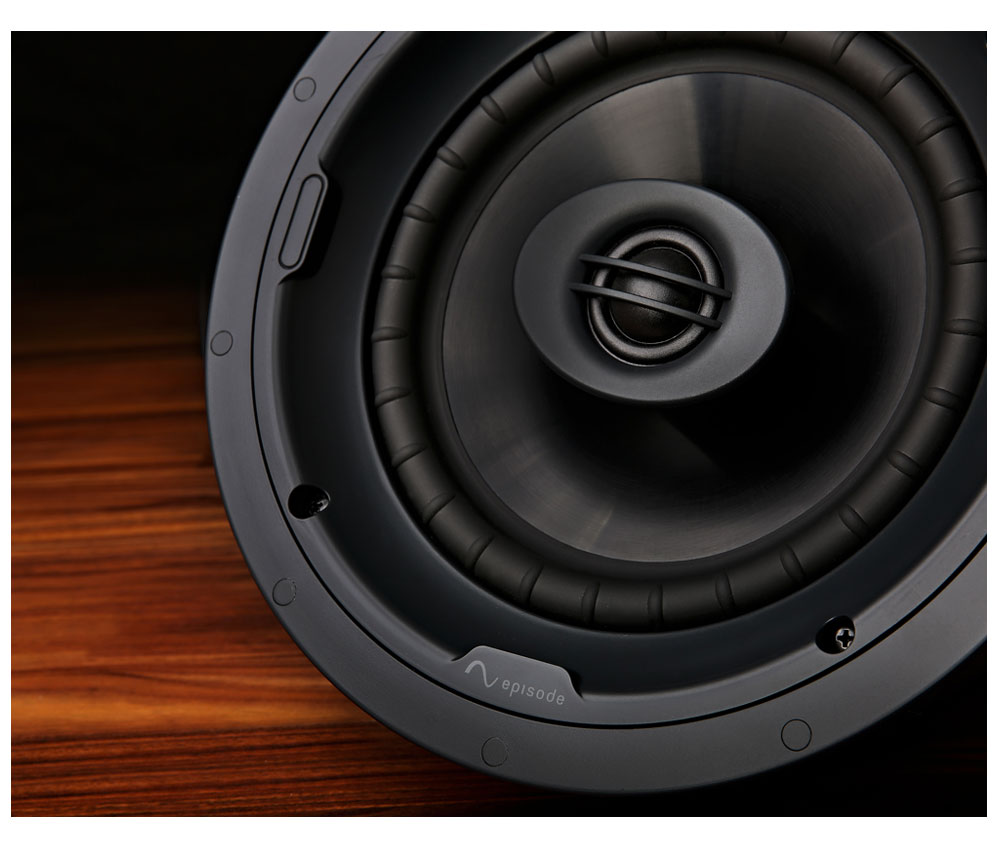

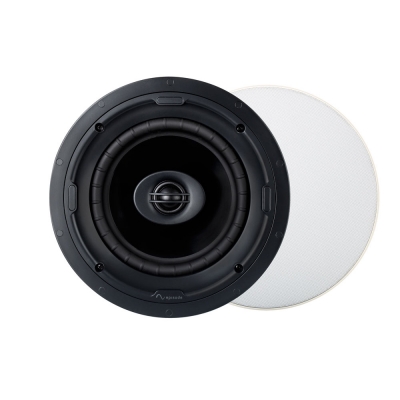

Episode® Signature 1300 Series All Weather In-Ceiling Speaker
Impeccable clarity meets astounding design, for a speaker that’s bound to impress every time. A weather-resistant makeup ensures a perfect fit for indoor and outdoor audio, while its smart installation features make it a winner for custom installs.
Weather Resistant
Weather resistant materials like stainless steel screws pass a hundred-hour salt spray test for quality, ensuring your system can withstand the elements.
Polypropylene Woofer
Forward-set polypropylene woofer for wide dispersion and punchy bass.

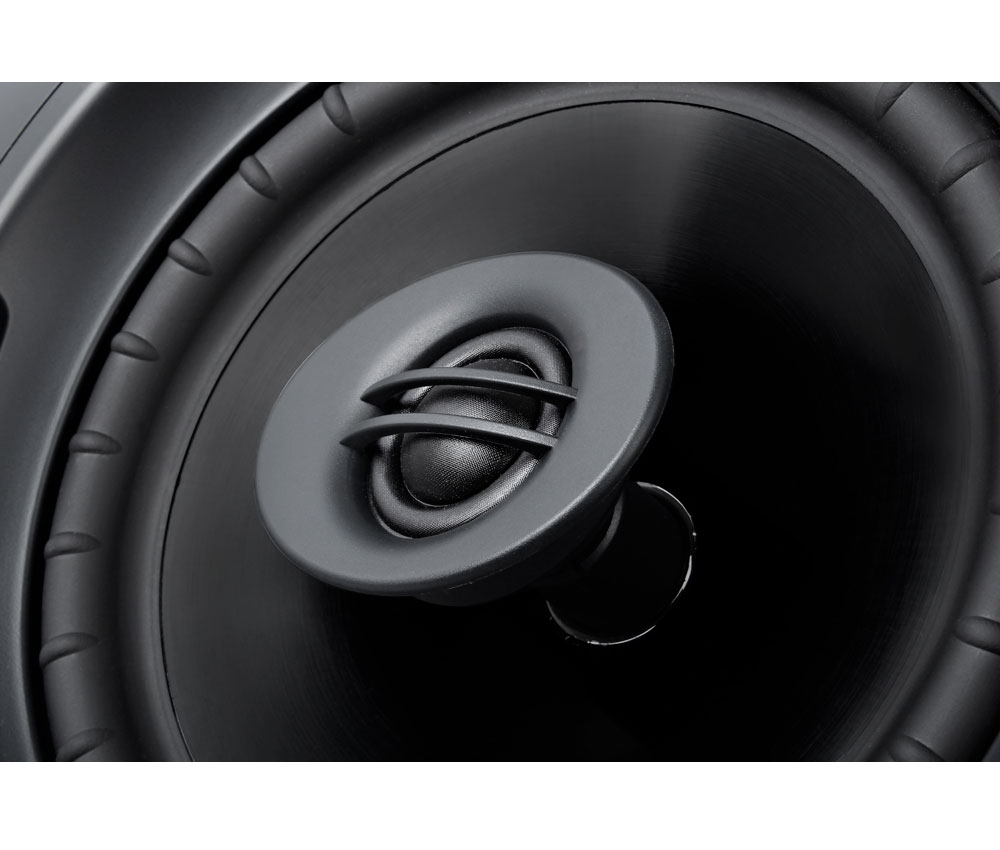

Adjustable Silk Dome Tweeter
Direct sound where you want to create more immersive experiences.
Ribbed Surround
Ensures linear cone movement for tighter bass with less distortion.
Thin-Bezel Design
Magnetic, one-step paintable grille keeps the speaker out of sight for a smooth, minimalistic finish.

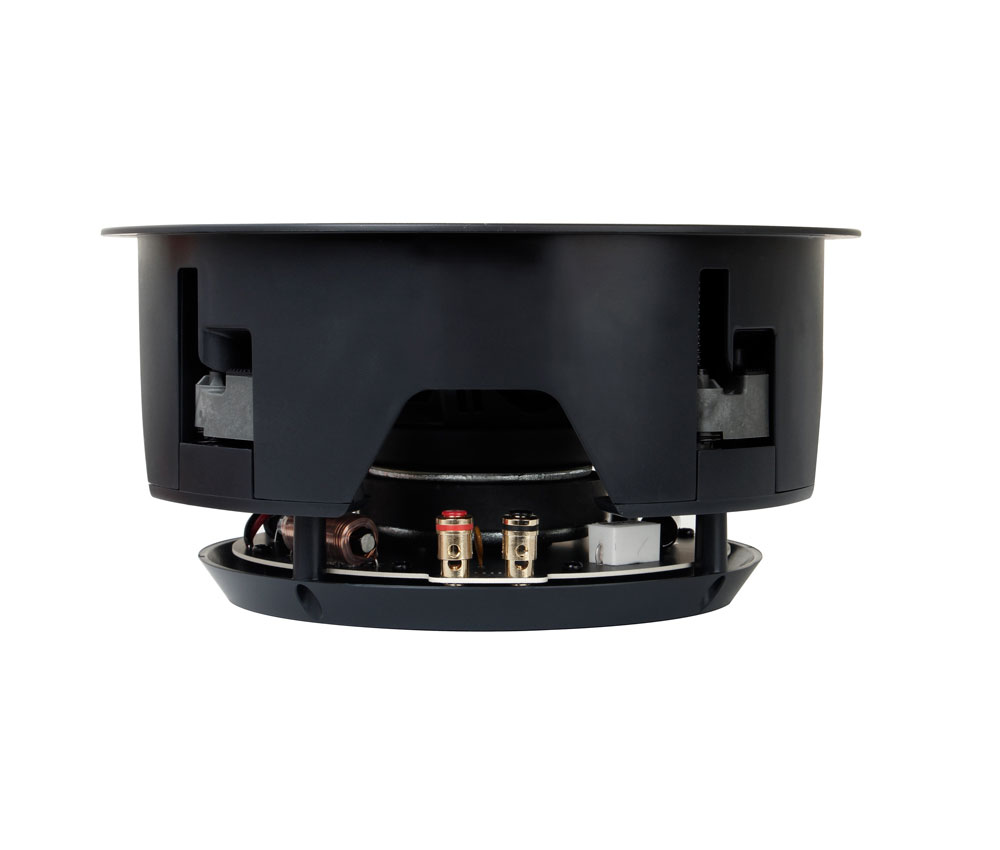

Exclusive Tension Dogs
Screws hold speakers in place during installation with just a quarter turn. Just tighten fully for easy release.
Install Cover
Protects speaker during install and doubles as a handle.
Simple, Versatile Brackets
These speakers are compatible with our ES-ESS brackets.
Partner Rewards
Episode® Signature Speakers are available exclusively for Partner Rewards Members.
Pure Sound
Raises the bar on everything you've ever heard.
Form Rivals Function
Designed for the world’s greatest stage.
Installs Made Easy
Integrator-friendly can’t even begin to describe it.
|
ESS-AW1300T-IC-6
|
|
|
Connector Type
|
Gold plated push terminals
|
|
Frequency Response
|
45 Hz - 20 kHz
|
|
Cutout Diameter
|
8.3"
|
|
Dimensions (W x H x D)
|
Finished Dimension w/ Grill: 9.6"
|
|
Mounting
|
Mounting Depth: 4.8"
|
| Mounting Depth w/ Enclosure: 6.2" | |
|
Weight
|
4.4 lb
|
|
Crossover Frequency
|
2.5 kHz
|
|
Nominal Impedance
|
8 ohm
|
|
Power Peak
|
130 Watts
|
|
Sensitivity
|
89 dB
|
|
Tweeter
|
3/4" Adjustable silk dome tweeter
|
|
Woofer
|
6" Injection-molded polypropylene cone woofer
|
